BIOEMTECH introduces the first generation of fillable mouse and rat phantoms. Designed for nuclear medicine (PET/SPECT) applications, also successfully tested for X-ray (CT), Magnetic Resonance Imaging (MRI), Optical Imaging (OI) and Magnetic Particle Imaging (MPI).
About the phantom

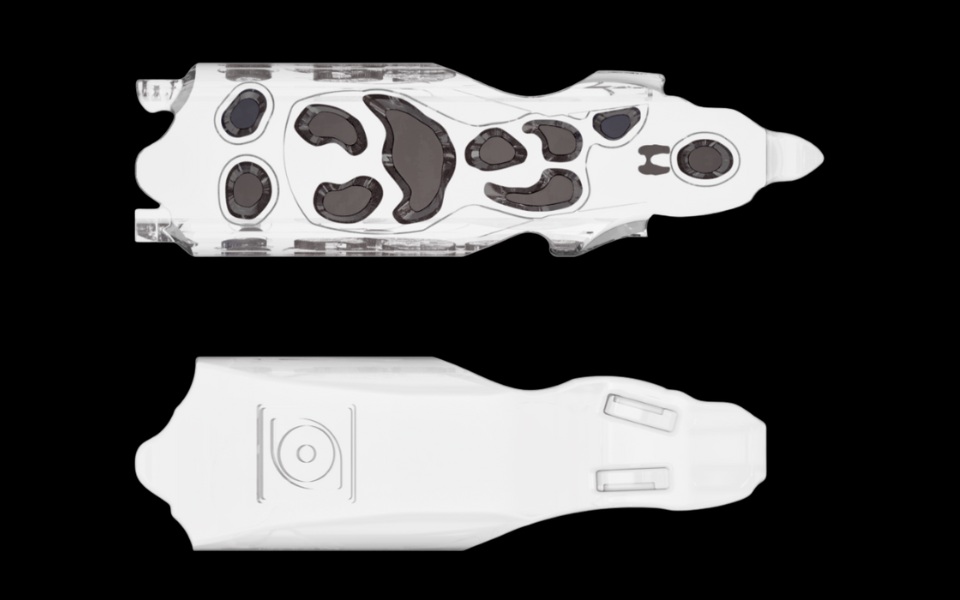

• The fillable mouse phantom is based on Digimouse, a model of a 28g mouse extracted from anatomical and cryosection data, published by Dogdas et al in 2007.
• Made from non-magnetic field sensitive and tissue comparable material.
• Contains major organs (brain, thyroid, heart, lungs, liver, kidneys, bladder) and two tumors.
• Easy filling of all organs/tumors with your hot solution
• Rat phantom based on a modification of the same model. Different sizes and animal positions are possible, upon request.
Suggested applications
- Study specific biodistributions without the arbitrariness related to a living animal.
- Reproducible assessment of different imaging protocols, using known concentrations
- Establishment of protocols for less frequently used isotopes
- Assessment of collimator penetration or positron range that deteriorate imaging quality
- Optimization of protocols for multiple isotope imaging
- Detection of low activities at the presence of high concentration in nearby organs
- Effect of different ratios between organs/tumors on the imaging performance
- Optimization of protocols for multiple simultaneous mouse imaging
- Evaluation of image reconstruction and correction algorithms.
Applications
Alpha-emitters
Quantification phantom studies
Phantom imaging with ²²⁵Ac and quantification plots, acquired at 3 characteristic energy peaks of the isotope
Applications
Alpha-emitters
Quantification phantom studies
Phantom imaging with ²¹²Pb and quantification plot, acquired at the 77keV and 238keV energy peaks of the isotope
Applications
Quantification phantom studies
Phantom imaging with ²⁰³Pb and quantification plot, acquired at the 73keV and 280keV energy peaks of the isotope
Applications
Theranostics
Quantification phantom studies

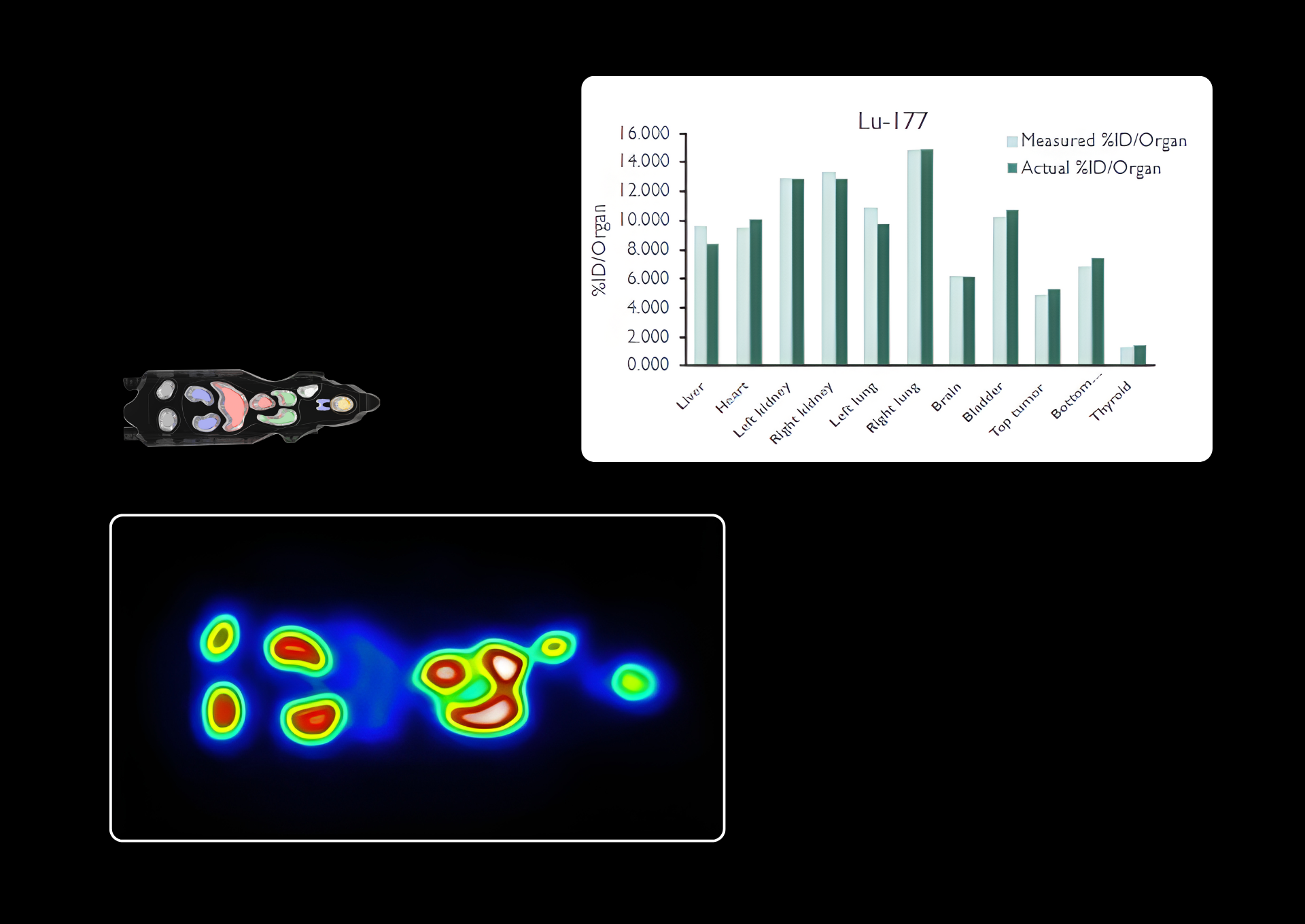

Phantom imaging with ¹⁷⁷Lu and quantification plot, acquired at the 113keV and 208keV energy peaks of the isotope
Applications
Alpha-emitters
Quantification phantom studies

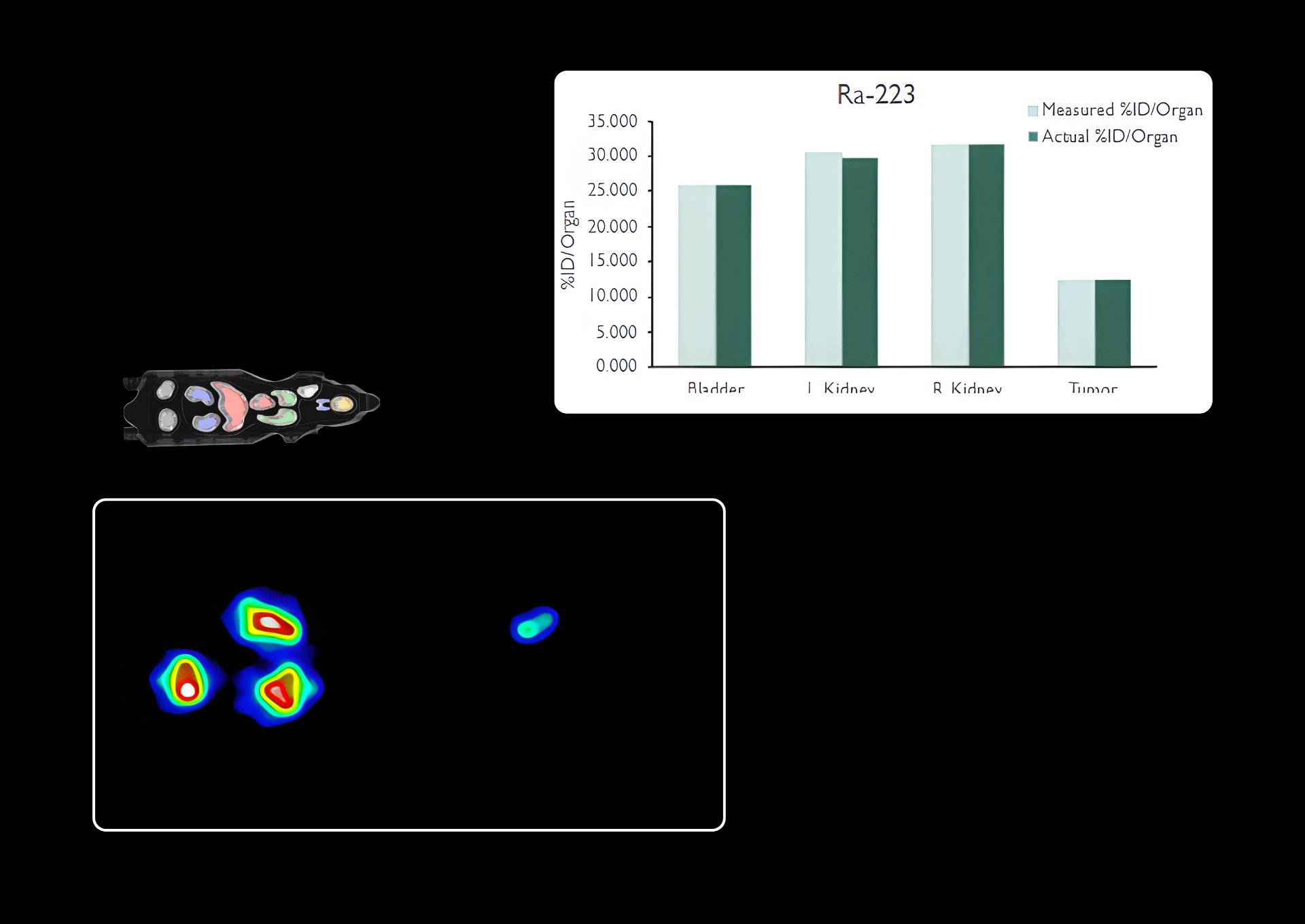

Phantom imaging with ²²³Ra and quantification plot, acquired at the characteristic energy peaks of the isotope
Applications
Theranostics
Quantification phantom studies

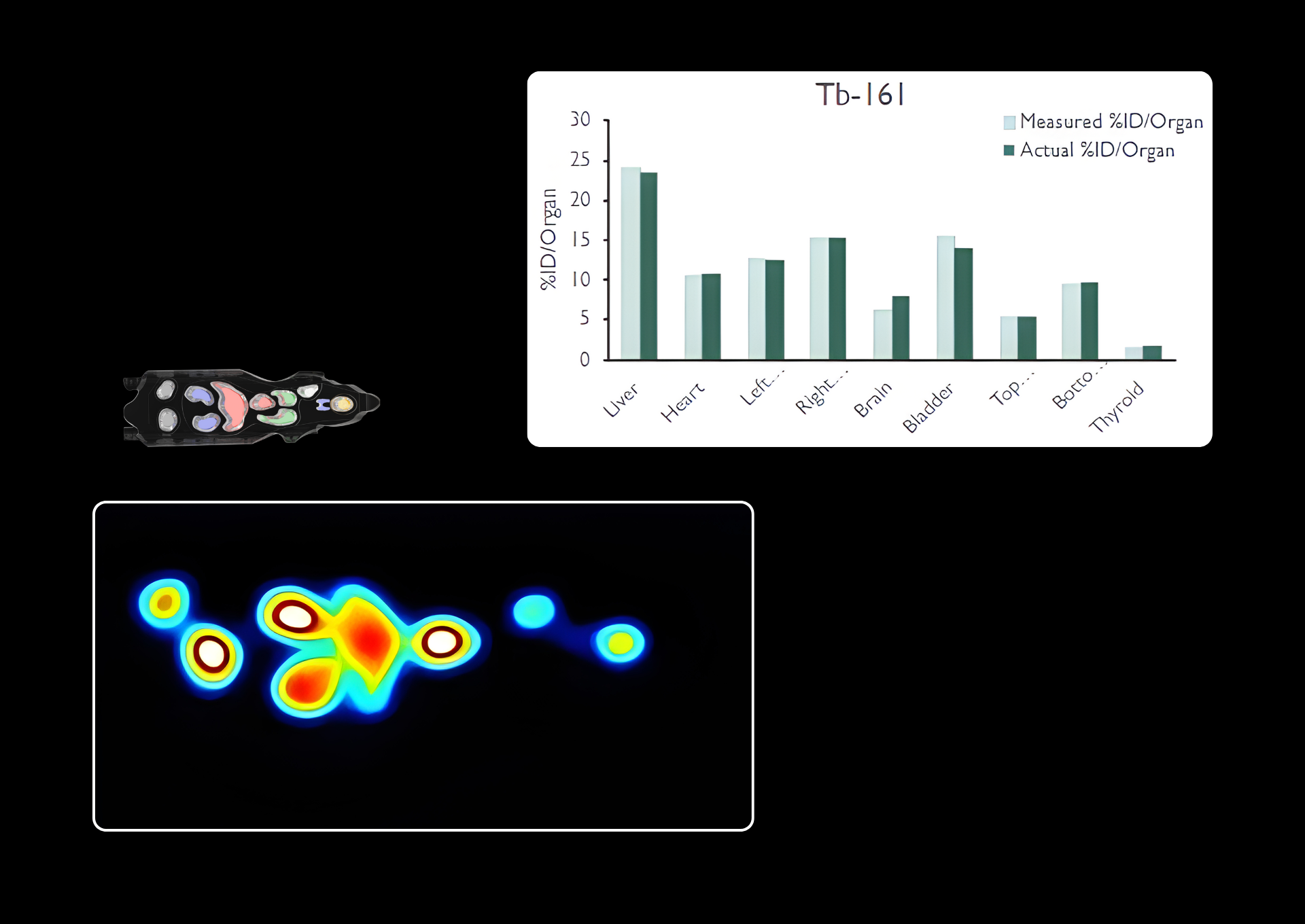

Phantom imaging with ¹⁶¹Tb and quantification plot, acquired at the characteristic energy peaks of the isotope
Applications
Quantification phantom studies

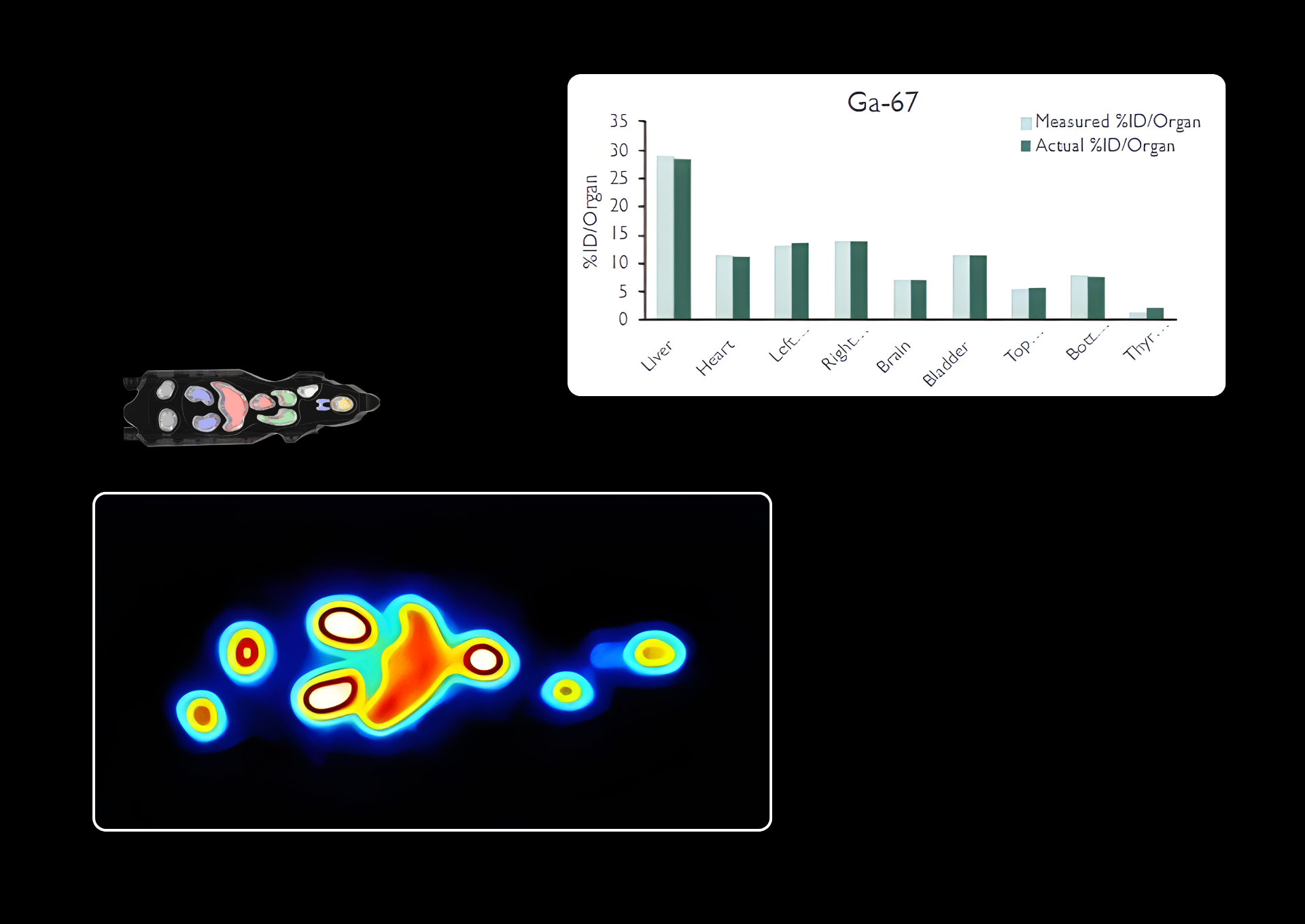

Phantom imaging with ⁶⁷Ga and quantification plot, acquired at the characteristic energy peaks of the isotope
Applications
Quantification phantom studies

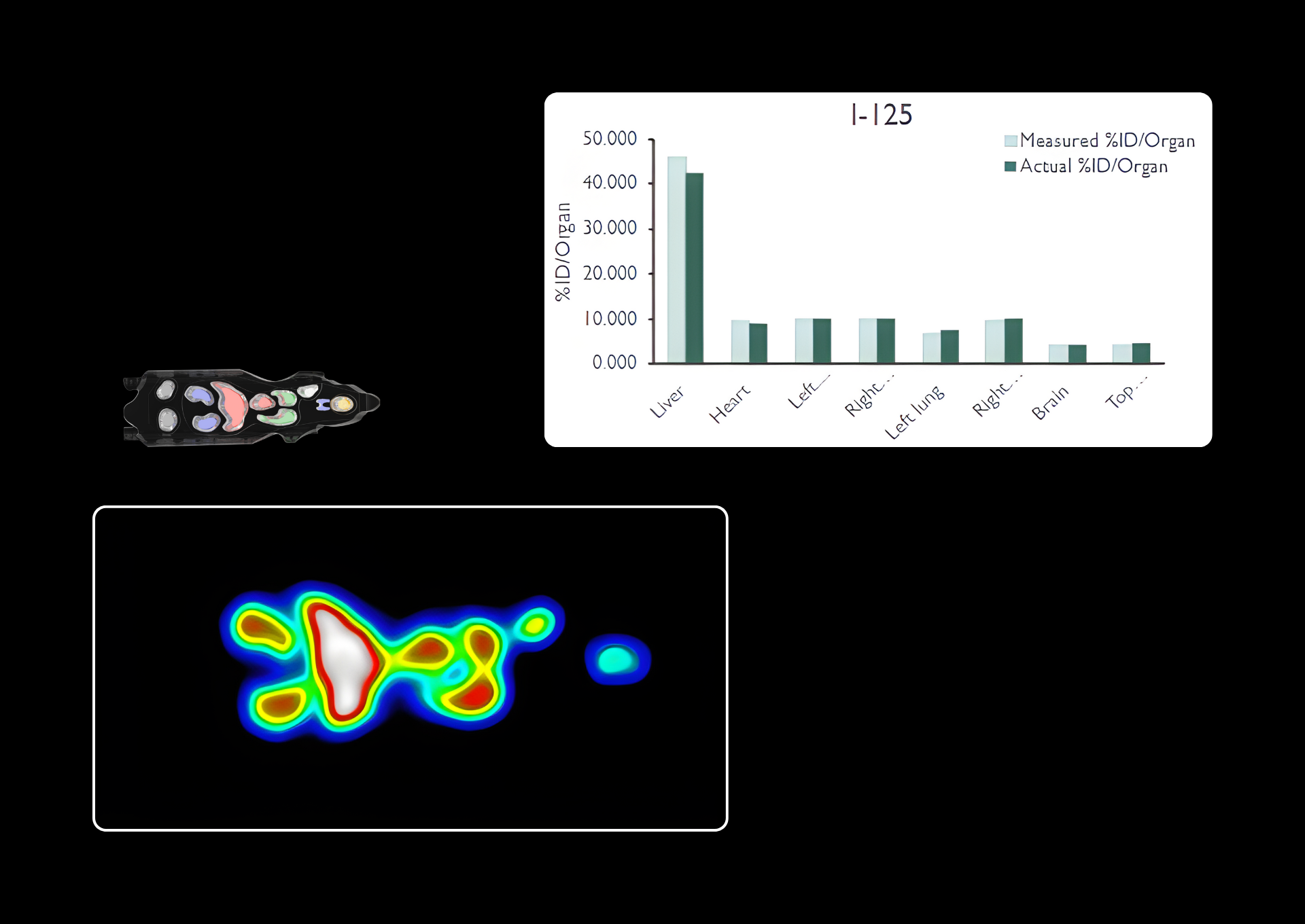

Phantom imaging with ¹²⁵I and quantification plot for activity analysis
Applications
Quantification phantom studies

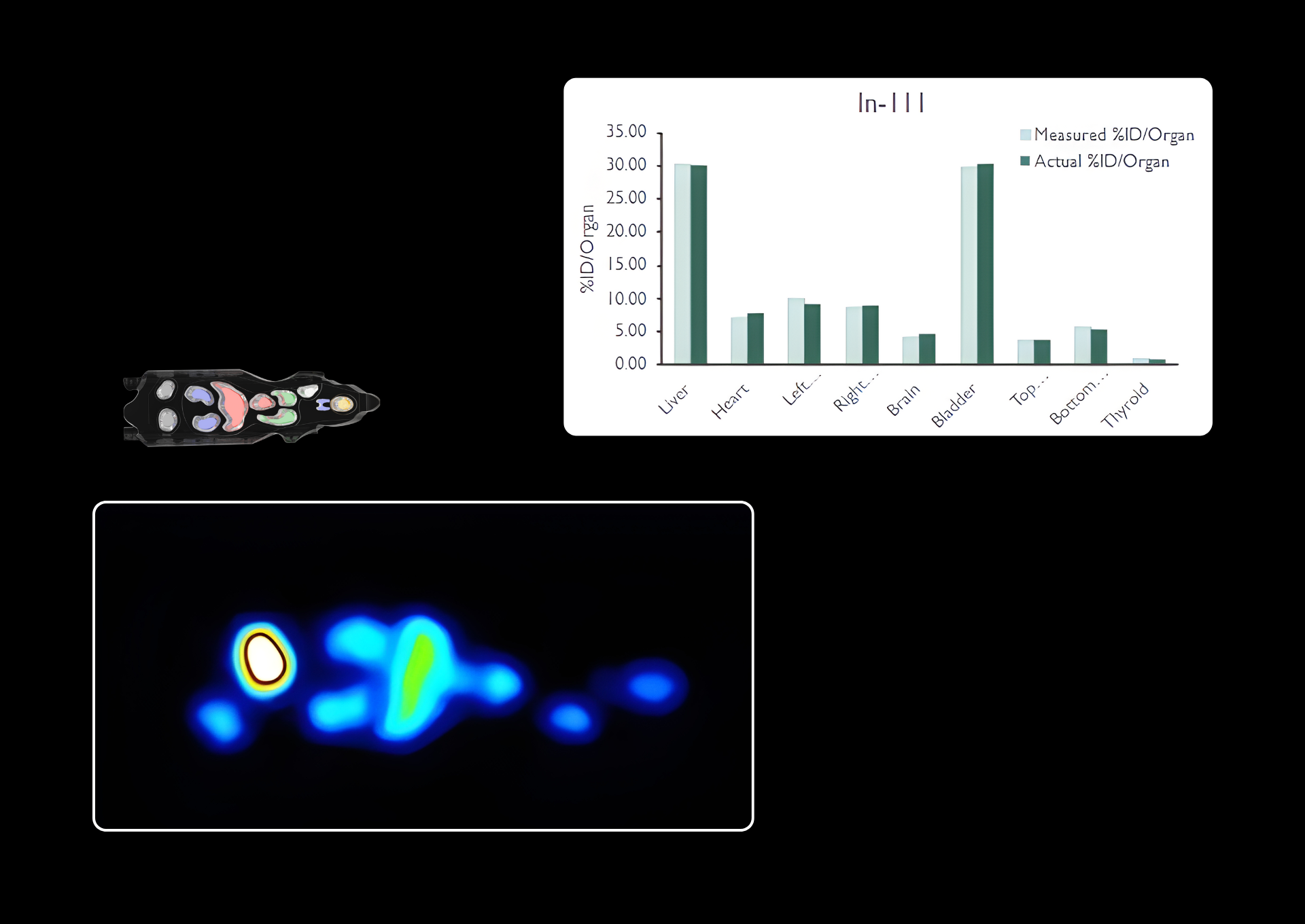

Phantom imaging with ¹¹¹In and quantification plot, acquired at the 170keV and 245keV energy peaks of the isotope
Applications
Quantification phantom studies

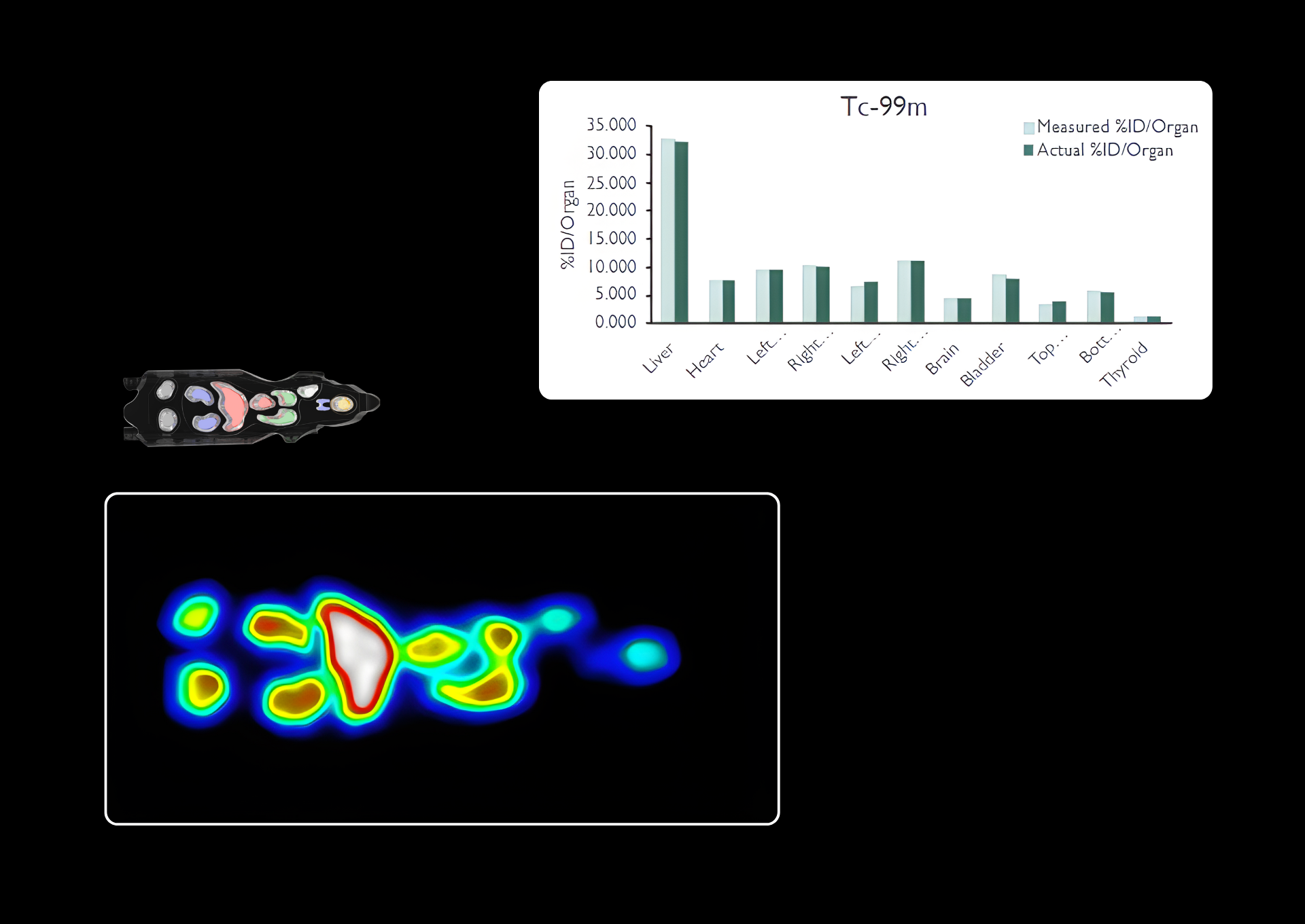

Phantom imaging with ⁹⁹ᵐTc and quantification plot, acquired at the 140keV energy peak of the isotope
Mouse phantom kit
2 x 28gr mouse phantom
1 Pipette
1 USB
Manual
Transport case
Rat phantom kit
2 x 250gr rat phantom
1 Pipette
1 USB
Manual
Transport case
Full phantom kit
2 x 28gr mouse phantom
2 x 250gr rat phantom
1 Pipette
1 USB
Manual
Transport case
Custom set of phantoms
Can contain a different set of phantoms or different sizes upon request
1 pipette
1 USB
Transport case
